EVLog

EVLog is a PHP + MySQL application for tracking and analyzing trips and charging sessions of an electric vehicle.

Table of Contents

• Introduction
• Requirements
• 1. Update the system
• 2. Install Docker
• 3. Verify the installation
• 4. Use Docker without sudo (optional but recommended)
• 5. Clone the application
• 6. Start the application
• 7. Verify the containers
• 8. Access the application
• 9. View logs
• 10. Stop the application
• 11. Reset the database
• Notes

EVLog is an application that allows you to export trips from the official Volvo app in CSV format and import them into this system. This enables you to maintain a historical record and perform analysis and statistics on your trips.

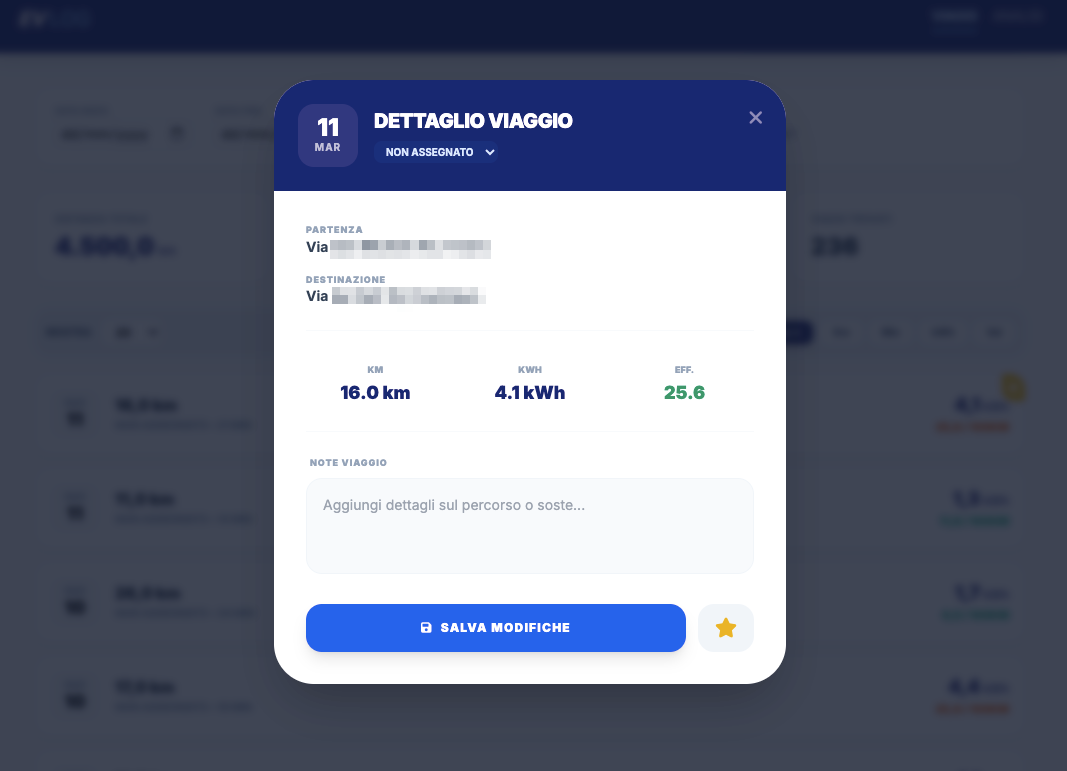

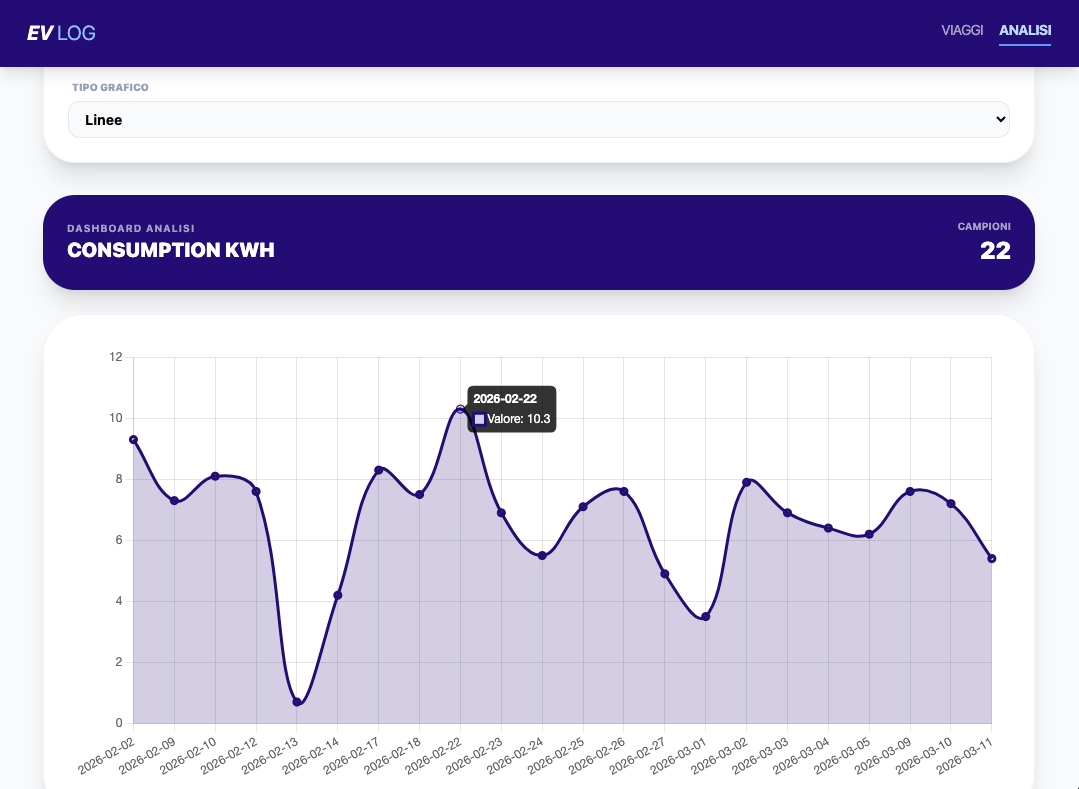

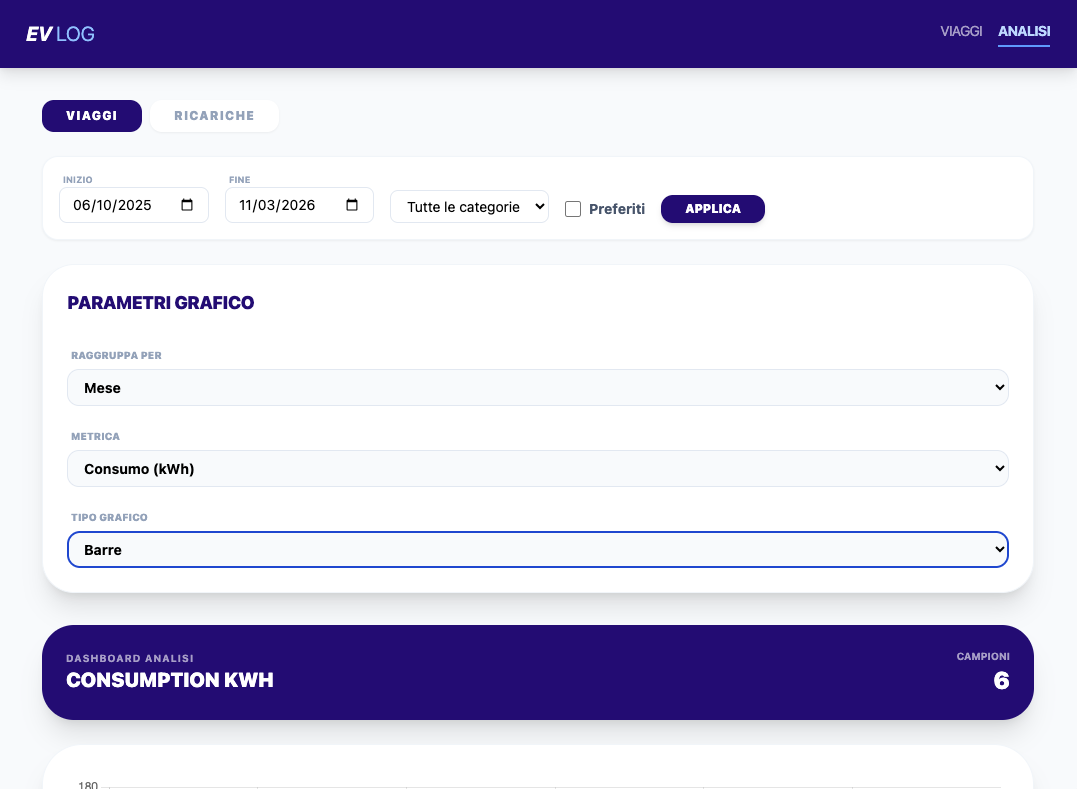

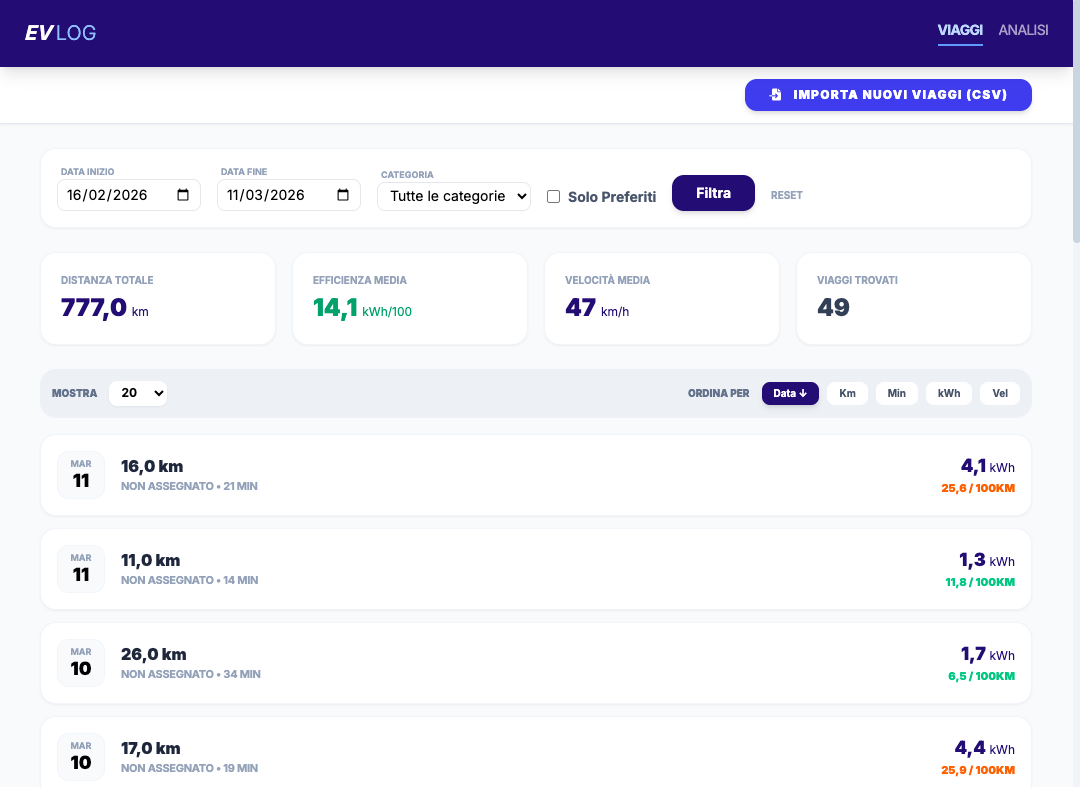

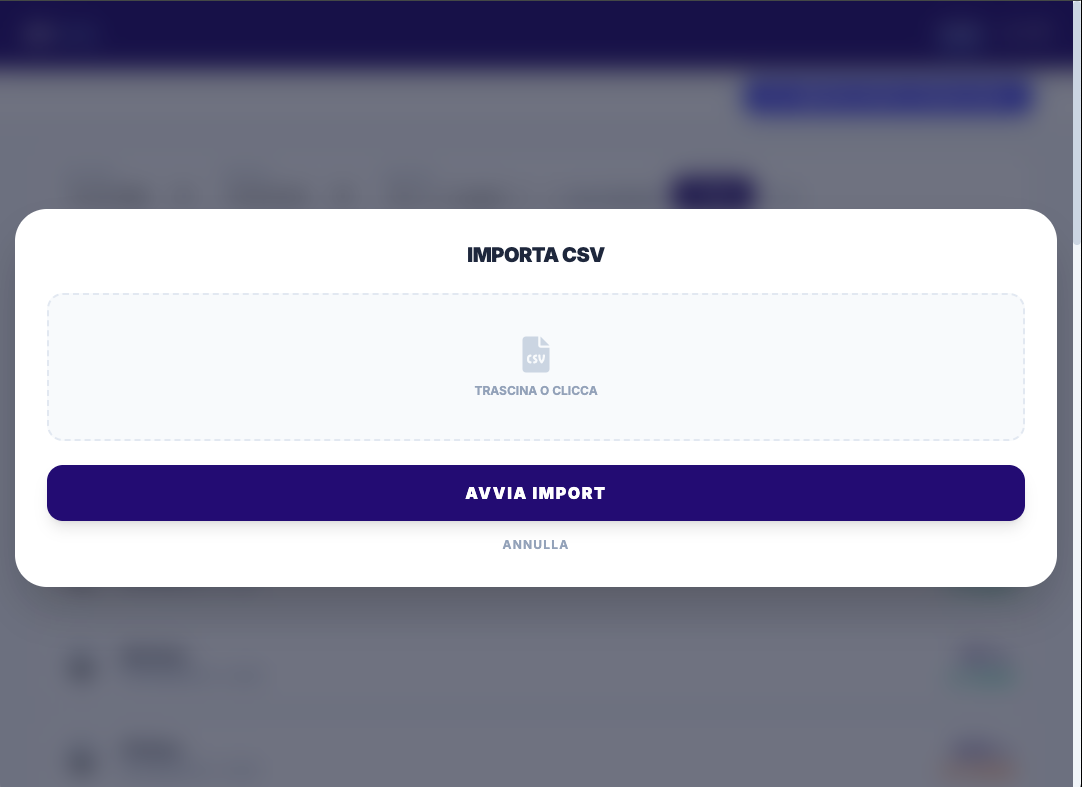

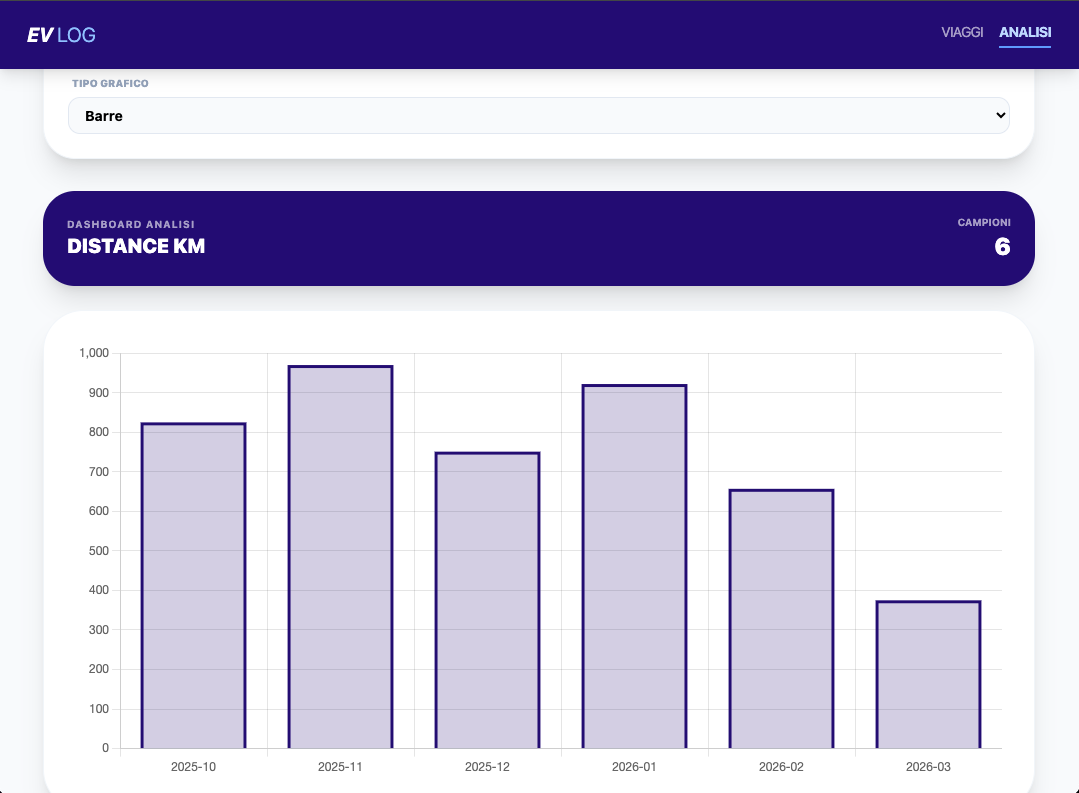

Below are some screenshots of the interface:

Disclaimer: This application is provided "as is" and may contain errors or inaccuracies. The developer assumes no responsibility for any use or misuse of the application.

---

Requirements

• Linux (tested on Ubuntu 24.04)
• Internet connection
• sudo privileges

---

1. Update the system

Open a terminal and run:

sudo apt update
sudo apt upgrade -y

---

2. Install Docker

Install required packages:

sudo apt install -y ca-certificates curl gnupg

Create the Docker keyring directory:

sudo install -m 0755 -d /etc/apt/keyrings

Download the official Docker GPG key:

curl -fsSL https://download.docker.com/linux/ubuntu/gpg | sudo gpg --dearmor -o /etc/apt/keyrings/docker.gpg

Set permissions:

sudo chmod a+r /etc/apt/keyrings/docker.gpg

Add the Docker repository:

echo "deb [arch=$(dpkg --print-architecture) signed-by=/etc/apt/keyrings/docker.gpg] https://download.docker.com/linux/ubuntu $(. /etc/os-release && echo $VERSION_CODENAME) stable" | sudo tee /etc/apt/sources.list.d/docker.list > /dev/null

Update package lists:

sudo apt update

Install Docker and Docker Compose:

sudo apt install -y docker-ce docker-ce-cli containerd.io docker-buildx-plugin docker-compose-plugin

---

3. Verify the installation

Check the installed Docker version:

docker --version

Run a quick test:

sudo docker run hello-world

If you see Hello from Docker, the installation is successful.

---

4. Use Docker without sudo (optional but recommended)

Add your user to the Docker group:

sudo usermod -aG docker $USER

Reload the group:

newgrp docker

Now you can run Docker commands without sudo.

---

5. Clone the application

Clone the repository:

git clone https://github.com/HostileCoding/EVLog.git

Enter the project directory:

cd EVLog/evlog

The project structure should look like this:

EVLog
│
├── docker-compose.yml
├── Dockerfile
│
├── src
│   ├── index.php
│   ├── config.php
│   └── ...
│
└── database
    └── init.sql

---

6. Start the application

Inside the project directory run:

docker compose up --build -d

Docker will automatically:

• build the PHP container
• start the MariaDB database
• initialize the database using init.sql
• start phpMyAdmin

---

7. Verify the containers

docker ps

You should see three containers:

• volvo_trips_web
• volvo_trips_db
• volvo_trips_phpmyadmin

---

8. Access the application

Open your browser.

EV Log application:

http://localhost:8080

phpMyAdmin:

http://localhost:8081

phpMyAdmin credentials:

server: db
user: volvo_user
password: volvo_password

---

9. View logs

To monitor logs and troubleshoot:

docker compose logs -f

Only the web container:

docker compose logs web

---

10. Stop the application

docker compose down

---

11. Reset the database

To completely recreate the database:

docker compose down -v
docker compose up --build

---

Notes

The database is automatically initialized during the first startup using:

database/init.sql

Database data is persistent thanks to Docker volumes.
